Landmark Pinnacle offers a full range of design, drafting and engineering services to manufacturers and installers throughout North America. We provide services ranging from design, drafting, proposal drawings, presentation, thermal analysis to instructions, modelling and 3d printed prototyping.
Design Services
Landmark Pinnacle provides a full range of design services. Our design services include:- System design
- Design, drafting and modelling
- Anchor design
- Formal client presentations

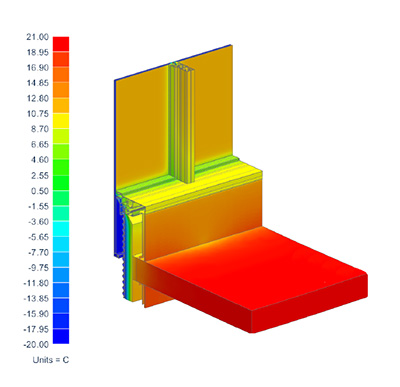

- 2D and 3D thermal analysis
- 3D printed prototypes
Drafting Services
Landmark Pinnacle offers a full range of drafting services to curtain wall manufacturers and installers throughout North America. Our drafting services include:
- Proposal drawings, either utilizing a custom system, or an existing system chassis from a manufacturer of your choice.
- Mock-up shop drawings
- Shop drawings (full submission sets)
- Fabrication releases
- Fabrication instructions
- Installation instructions, tag plans and elevations
